YoiYee M16 Sleeve Anchor Bolts 20x150mm Concrete Masonry Anchors Pack of 2

Key features

• Key Specifications - Requires 20mm drill hole. Features M16 thread size, 20mm sleeve diameter, and 150mm total length.
• Heavy Duty Anchoring - Carbon steel expansion design provides strong grip in solid structural masonry under high load conditions.
• Versatile Masonry Use - Secures timber posts, steel brackets, cable hooks, and ladder wall anchors into solid concrete, brick, or stone.
• Corrosion Protection - Zinc-plated steel coating resists rust for long-lasting performance in indoor and covered outdoor environments.

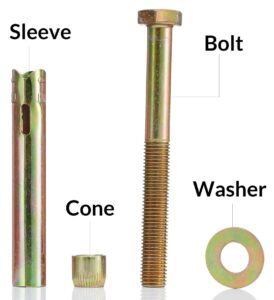

• Package Contents - 2 x M16 20mm x 150mm sleeve expansion anchors with pre-assembled hex nuts and flat washers.

Description

These M16 expansion sleeve anchors secure heavy structural loads into solid concrete and masonry. Deep 150mm sleeve engagement provides high pull-out resistance for industrial installations. The pre-assembled nut and washer allow direct placement through fixture mounting holes. Specifications Thread Size: M16 Sleeve Diameter: 20mm Total Length: 150mm Required Drill Hole: 20mm Material: Zinc-Plated Carbon Steel Pack Quantity: 2 Pieces Common Questions Q: What size hole and clearance are required for these anchors? A: Requires a 20mm diameter drill hole. M16 refers to the internal bolt thread; the outer sleeve diameter is 20mm and total length is 150mm. Works Great For Securing heavy storage racking, ladder wall anchors, timber wall plates, steel brackets, and machinery to concrete floors or solid brick walls. Pro Tip Clean all dust from the 20mm drilled hole using a vacuum or pump before inserting the anchor to maximize expansion sleeve grip. Package 2 x M16 20mm x 150mm expansion sleeve anchors with nuts and washers
