Fasteners & Fixings › Masonry Anchors ASIN B08BV2JQJ8

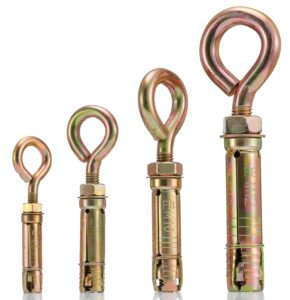

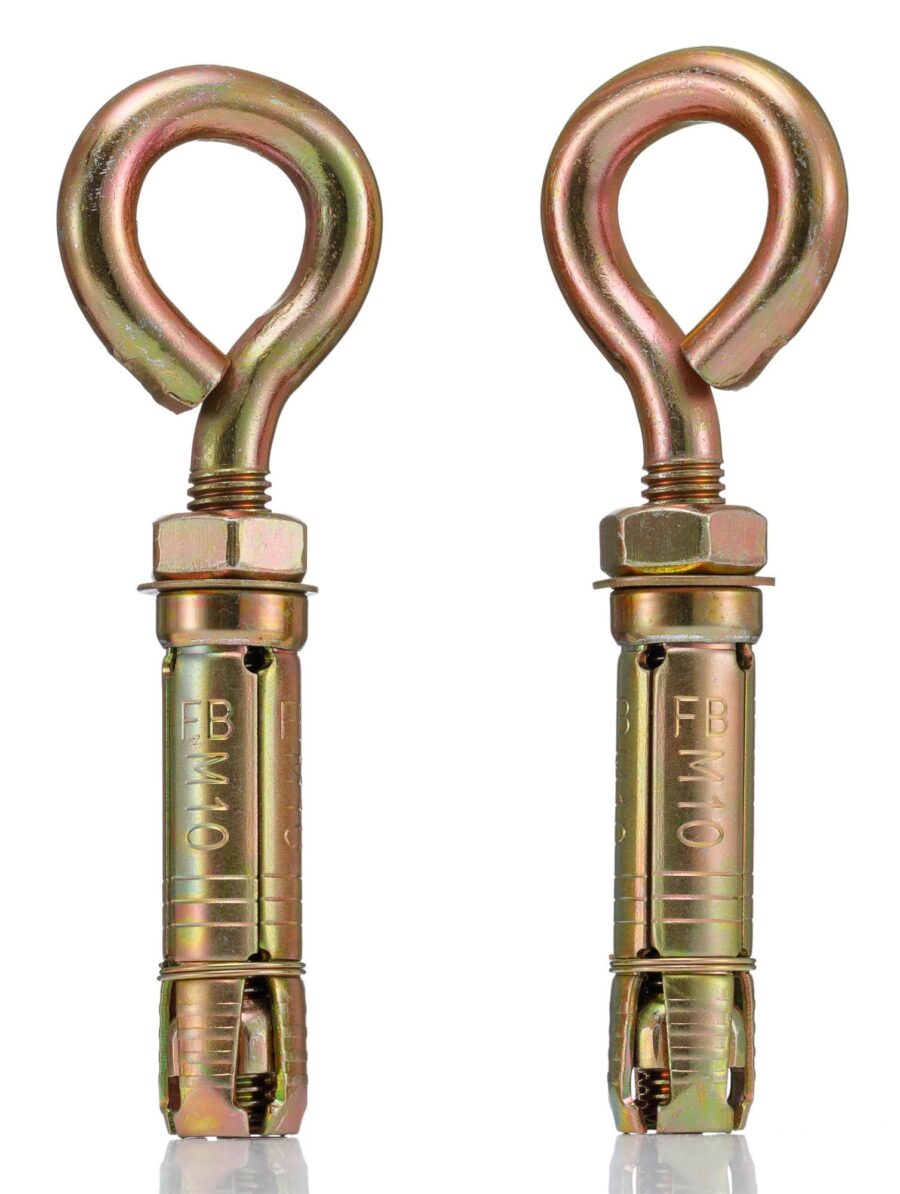

YoiYee Eye Bolt Masonry Anchor Bolts, 16mm (Outer Dia) x 70mm (L), 2 Pack

£5.97Amazon.co.uk price inc. VAT · checked 16 Nov 2026, 04:25 UTC 2 pcsper pack
Buy on Amazon ↗

Reference price shown on Amazon.co.uk when last checked. Final price, offers and delivery are shown on Amazon. Trade quantities are quoted separately.

Specifications

Pack contents2 pcs
Thread sizeM10
Thread pitch1.5 mm
Length70 mm
Outer diameter16 mm
Head diameter10 mm
Min. hole depth70–75 mm
MaterialZinc-plated steel

Key features

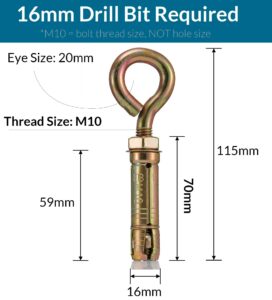

  • Technical Specifications - Thread size: M10 (10mm). Total length: 70mm. Sleeve diameter: 15.7mm. Requires a 16mm drill bit for 70-75mm deep hole.
  • Heavy Duty Anchoring - These masonry anchors provide a reliable method for securing heavy loads, cables, and chains to solid concrete and brickwork surfaces.
  • Versatile Compatibility - Works with washing lines, sun shade sails, trellis wires, and architectural rigging. Designed for secure masonry fixing applications.
  • Corrosion Resistant Construction - Made from solid steel with yellow zinc plating to offer durability and resistance to rust in outdoor environments.

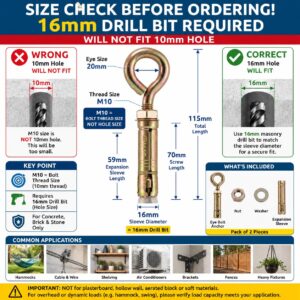

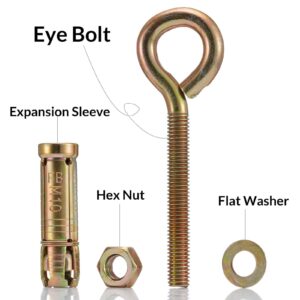

  • Package Contents - 2 x M10 Expansion Anchor Eye Bolts (Note: Requires 16mm drill hole, not for 10mm holes).

Description

These M10 expansion anchor eye bolts provide a secure anchoring point in concrete and masonry surfaces. The integrated eyelet allows for easy attachment of cables, chains, and wire ropes. Specifications Size: M10 x 70mm Material: Yellow zinc-plated steel Thread Diameter: 10mm Sleeve Diameter: 15.7mm Drill Bit Size: 16mm or 17mm Quantity: 2 Pieces Works Great For Securing washing lines, attaching sun sails to brickwork, or anchoring trellis wires in concrete. Pro Tip Ensure the drilled hole is thoroughly cleaned of dust and debris before inserting the anchor to achieve maximum holding power. Package 2 x M10 Expansion Anchor Eye Bolts
