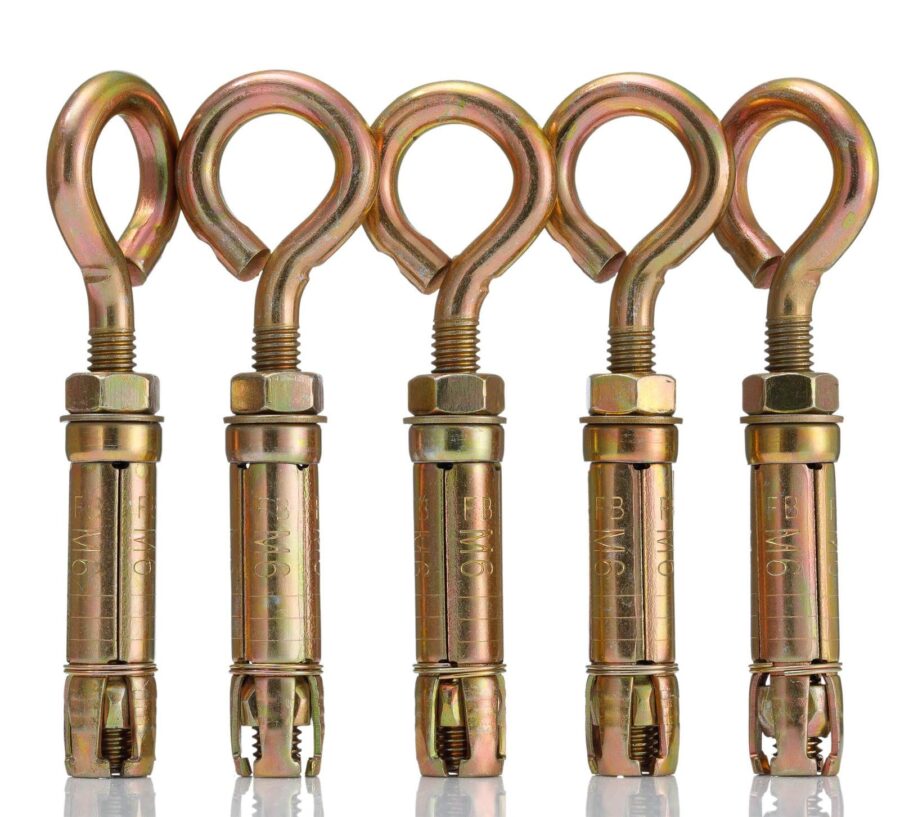

YoiYee M6 Concrete Eye Anchor Bolts, Heavy Duty Masonry Expansion, 5 Pack

Key features

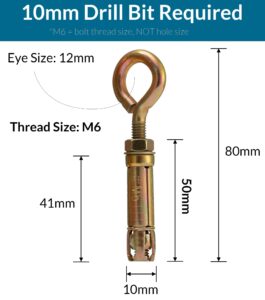

• Installation Fitment - Requires a 10mm masonry drill bit. Features an M6 internal thread diameter with 50mm sleeve bolt length for solid anchoring.
• Heavy Duty Masonry Anchor - Reliable anchor bolts for brick, solid concrete, and natural stone, manufactured from grade 4.8 tensile strength steel.
• Hardware Applications - Designed for securing wire ropes, overhead cabling, safety chains, and wall-mounted brackets to solid structural walls.
• Corrosion Protection - Yellow zinc-plated steel casing expands outward against borehole walls when tightened with a standard spanner or wrench.

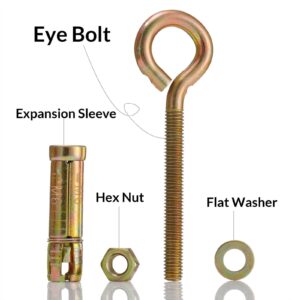

• Package Contents - Pack of 5 complete M6 masonry expansion eye bolt assemblies, including forged eye nuts, flat washers, and expansion sleeves.

Description

These heavy duty expansion eye bolts create rigid anchor points in solid masonry, brickwork, and concrete structures. The 10mm steel expansion sleeve flares outward inside the drilled cavity as the nut is torqued, delivering a tight mechanical grip. Specifications Thread Size: M6 Drill Hole Diameter: 10mm Bolt Length: 50mm Material: Yellow zinc-plated steel Steel Strength Grade: 4.8 Quantity: 5 pieces Common Questions Q: What size drill bit is needed to install these anchors? A: A 10mm masonry drill bit. The outer diameter of the expansion sleeve is 10mm, requiring a matching 10mm drilled hole. Q: Which wall types are these expansion bolts suitable for? A: They are designed for solid concrete, dense brickwork, and stone. They are not intended for hollow brick, plasterboard, or lightweight aerated block. Works Great For Anchoring wire ropes, overhead garden festoon cables, shade sail tensioners, safety chains, and wall hardware directly into solid masonry and concrete. Pro Tip Drill a 10mm hole to 50mm depth and use a blow pump or wire brush to remove masonry dust before inserting the sleeve for full expansion grip. Package 5x M6 expansion anchor eye bolts (includes forged eye nuts, washers, and expansion sleeves)
