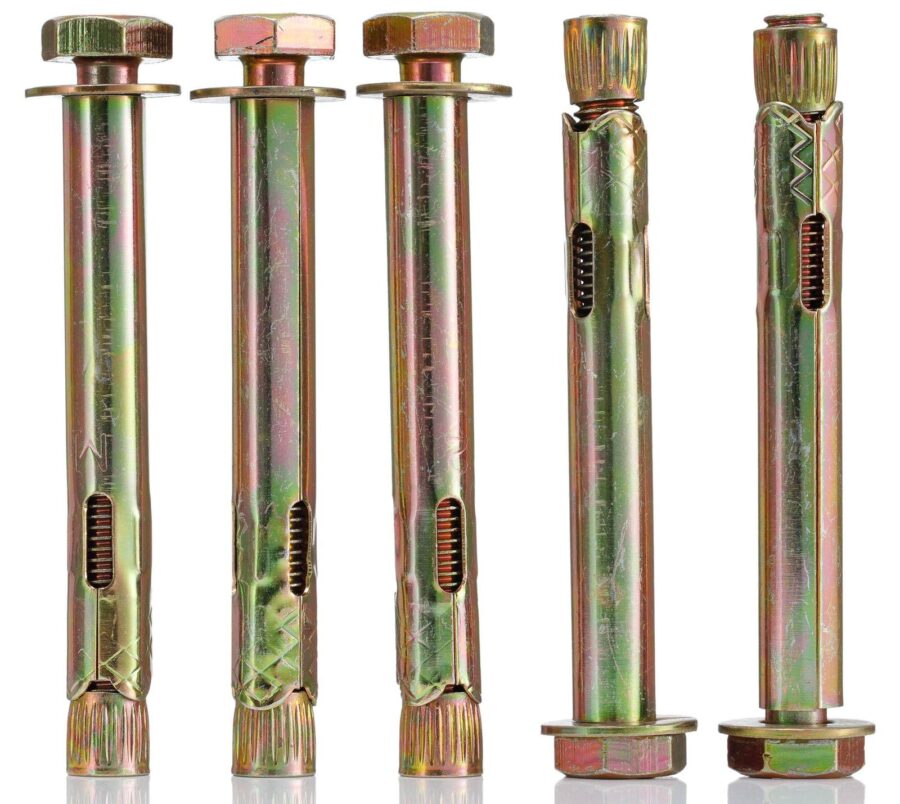

YoiYee M10 x 100mm Sleeve Anchor Hex Bolts, Concrete Masonry Anchors 5 Pack
Reference price shown on Amazon.co.uk when last checked. Final price, offers and delivery are shown on Amazon. Trade quantities are quoted separately.
Specifications
| Pack contents | 5 pcs |
|---|---|
| Thread size | M10 |
| Thread pitch | 1.5 mm |
| Length | 100 mm |
| Outer diameter | 12 mm |
| Head diameter | 12 mm |
| Drill hole | 12 mm |
| Material | Zinc-plated steel |
Key features
- Sizing & Drill Requirement - M10 thread with 10mm bolt core and 100mm total length. Requires a 12mm drill bit and 12mm diameter hole to accommodate the outer sleeve.
- Solid Substrate Anchoring - Expands outward against substrate walls when tightened, providing secure grip in solid concrete, dense brick, and stone.
- Zinc-Plated Steel - Formed from zinc-plated steel for corrosion resistance and reliable strength in interior and exterior masonry installations.
- Structural Fixtures - Designed for securing posts, timber wall plates, heavy shelving brackets, ladder safety anchors, and machinery bases.
- What Is Included - 5 x M10 x 100mm expansion sleeve bolts, pre-assembled with matching hex nuts and flat washers.
Description
These M10 sleeve anchor bolts provide permanent structural fastening into solid masonry. The outer 12mm sleeve expands outward as the integrated hex nut draws the conical bolt head upward. Specifications Thread Size: M10 Total Length: 100mm Sleeve Outer Diameter: 12mm Required Drill Bit Size: 12mm Material: Zinc-Plated Steel Fastener Type: Hex Nut Sleeve Anchor Pack Quantity: 5 Common Questions Q: What size drill bit is required to install these anchors? A: A 12mm drill bit is required. The bolt thread is M10 (10mm), but the expanding steel sleeve has a 12mm outer diameter. Q: How deep should the hole be drilled in concrete? A: Drill the hole to a minimum depth of 100mm to match the full anchor length, allowing the sleeve to sit flush. Works Great For Securing heavy posts, ladder wall safety ties, timber wall plates, industrial shelving brackets, and machinery to solid concrete and stone. Pro Tip Clear all masonry dust and rubble from the drilled hole with a blow pump or wire brush before inserting the anchor sleeve. Package 5 x M10 x 100mm sleeve anchor hex bolts with pre-fitted hex nuts and washers
