YoiYee 35mm Cabinet Hinge Jig Kit with Forstner Drill Bit Guide

Key features

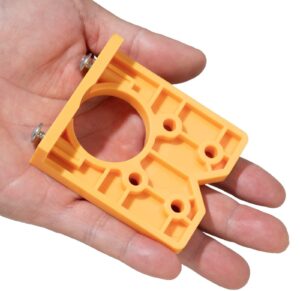

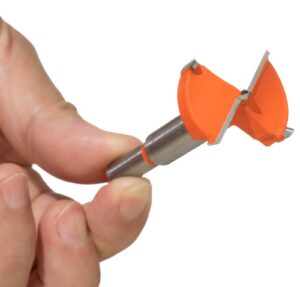

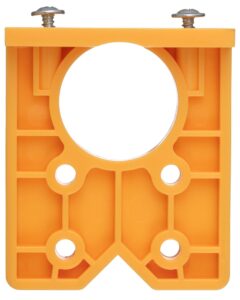

• Key Specifications - 35mm cutting diameter Forstner bit with 9mm hex shank and 78mm length; high-impact locator plate for precise hole marking.

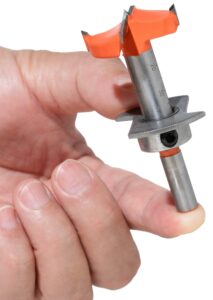

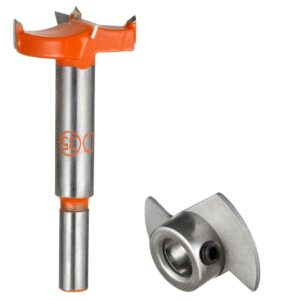

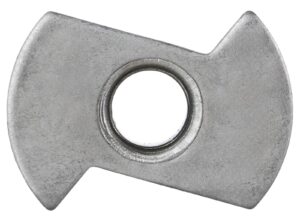

• Accurate Hole Positioning - Centring tip and integrated V-locator ensure clean cup drilling without bit drift, while the adjustable stop ring controls depth.
• Woodworking Compatibility - Designed for installing concealed cup hinges on kitchen cupboards, wardrobe doors, and cabinets, suitable for hand and bench drills.
• Durable Carbide Construction - Heat-treated carbide steel cutting edges resist wear and corrosion, paired with a tough ABS guide plate for repeatable DIY projects.

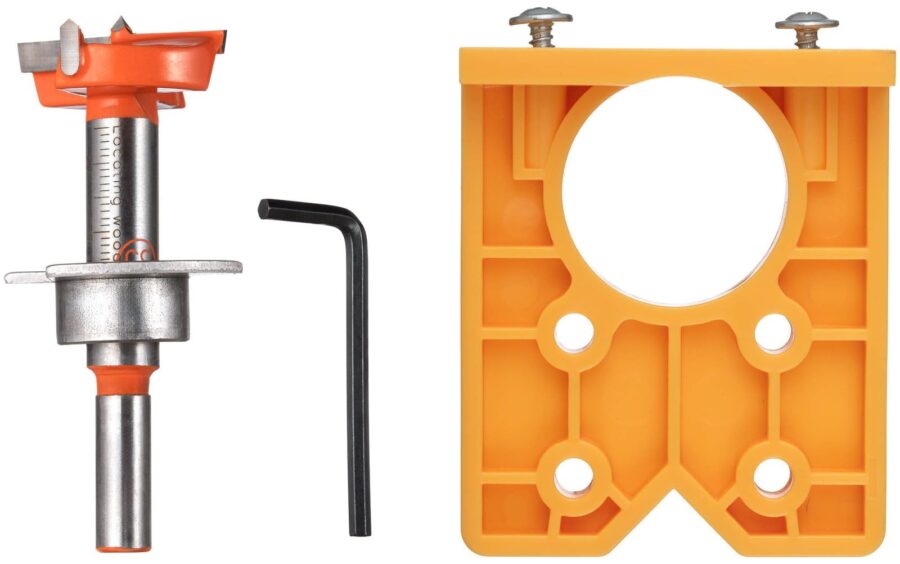

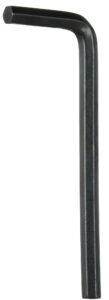

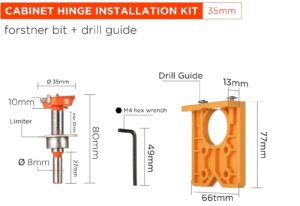

• Package Contents - 1 x 35mm hinge locator, 1 x 35mm carbide Forstner bit, and 1 x hex adjustment wrench.

Description

This 35mm concealed hinge jig kit simplifies mounting cabinet doors by positioning and boring clean cup holes without guesswork. The carbide Forstner bit cuts smooth, flat-bottomed recesses while the V-locator aligns drill centres accurately. Specifications Cutting Diameter: 35mm Bit Material: Carbide Steel Locator Material: High-Impact Polycarbonate / ABS Hex Shank Diameter: 9mm Shank Length: 27mm Total Bit Length: 78mm Works Great For Installing concealed cupboard hinges, replacing wardrobe door hardware, and aligning 35mm hinge cups on flat wooden panels. Pro Tip Use the yellow positioning plate only to mark pilot and centre points with a pencil or awl; do not drill directly through the plastic plate. Package 1 x 35mm Hinge Locator Plate, 1 x 35mm Forstner Bit, 1 x Hex Adjustment Wrench
