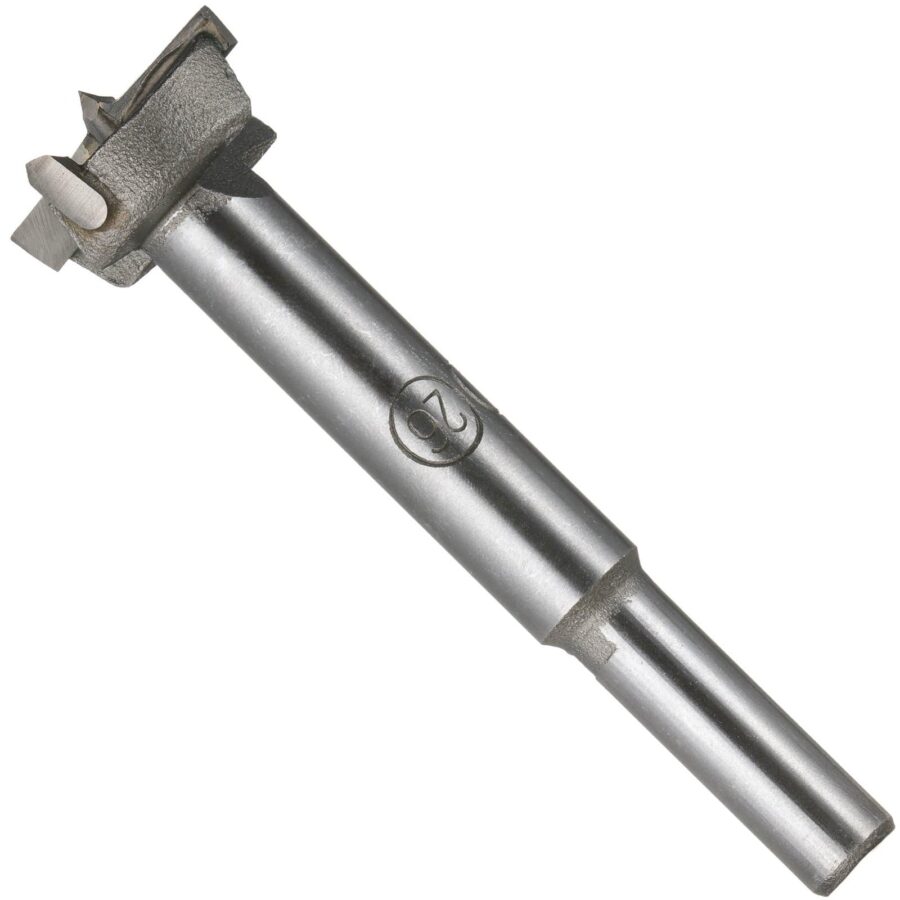

YoiYee 26mm Tungsten Carbide Wood Drill Bit, Hinge Boring Hole Cutter

Key features

• 26mm cutting diameter, 7mm round shank, 48mm drilling depth, and 80mm overall length. Fits standard chucks on fixed drill presses.
• Tungsten carbide cutter tip with hardened steel body. Arc curve head clears wood chips quickly for clean, burr-free holes.
• Designed for bench drills, vertical drill presses, and CNC routers. Operate at a maximum speed of 2000rpm. Not suitable for handheld power drills.
• Bores smooth flat-bottomed holes in solid wood, plywood, MDF, plastic, and fibreglass. Suitable for cabinet hinge boring and door lock fitting.
• Includes 1 x 26mm drill bit and 1 x protective case. For wood and non-metallic materials only; do not use on metal or non-ferrous metals.

Description

This 26mm tungsten carbide boring bit cuts flat, clean holes for concealed cabinet hinges and woodworking joints. Dual spurs and a sharp centre point keep the bit positioned accurately without wandering. Built for fixed workshop machinery to produce smooth, splinter-free perforations. Specifications Drill diameter: 26mm Shank diameter: 7mm round shank Drilling depth: 48mm Overall length: 80mm Cutter material: Cemented tungsten carbide Body material: Hardened steel Maximum speed: 2000rpm Machine compatibility: Bench drills, vertical drilling machines, CNC carving machines Common Questions Q: Can I use this drill bit with a handheld power drill? A: No. This bit is designed exclusively for fixed machinery such as bench drills, vertical drills, and CNC machines. Handheld drills cause wandering and tool damage. Q: Can this bit cut through metal or aluminium? A: No. It is suitable only for wood, plywood, MDF, and plastics. Using this bit on metal or non-ferrous metals will quickly damage the tungsten carbide cutting edge. Q: What is the maximum operating speed for this 26mm bit? A: The maximum recommended operating speed is 2000rpm. Start at low speed to establish position before increasing speed. Works Great For Concealed hinge boring in cabinet doors, furniture drawer joinery, door lock fitting, and clean circular recessing in solid timber, plywood, MDF, and rigid plastics. Pro Tip Start drilling at low speed so the centre spur accurately establishes your hole position, and apply water cooling when boring dense hardwoods to extend cutter sharpness. Package 1 x 26mm tungsten carbide hinge boring drill bit, 1 x protective plastic storage case
