YoiYee 10Pcs Quick Wire Connectors, 2 Pin Lever Splice Terminal Block

Key features

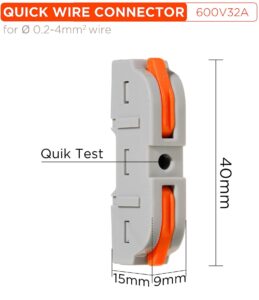

• Technical Specifications - Supports 0.08-4.0mm² (28-12 AWG) solid and 0.08-2.5mm² flexible wiring. Rated for 32A and 250V with 9-10mm strip length.
• Quick Lever Clamping - Push orange clip to 90 degrees, insert stripped wire, and release clamp to secure connections in seconds without crimping tools.

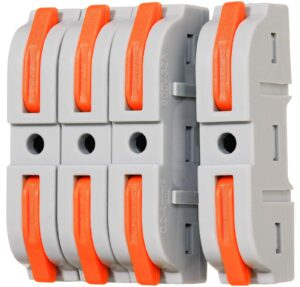

• Modular Splicing Design - Interlocking side slots allow building 2, 3, 4, or 6-way modular terminal blocks for lighting circuits and compact junction boxes.
• Flame Retardant Housing - Constructed with fire-resistant PA66/PC body and nickel-plated copper conductors. Includes test holes for live voltage checks.

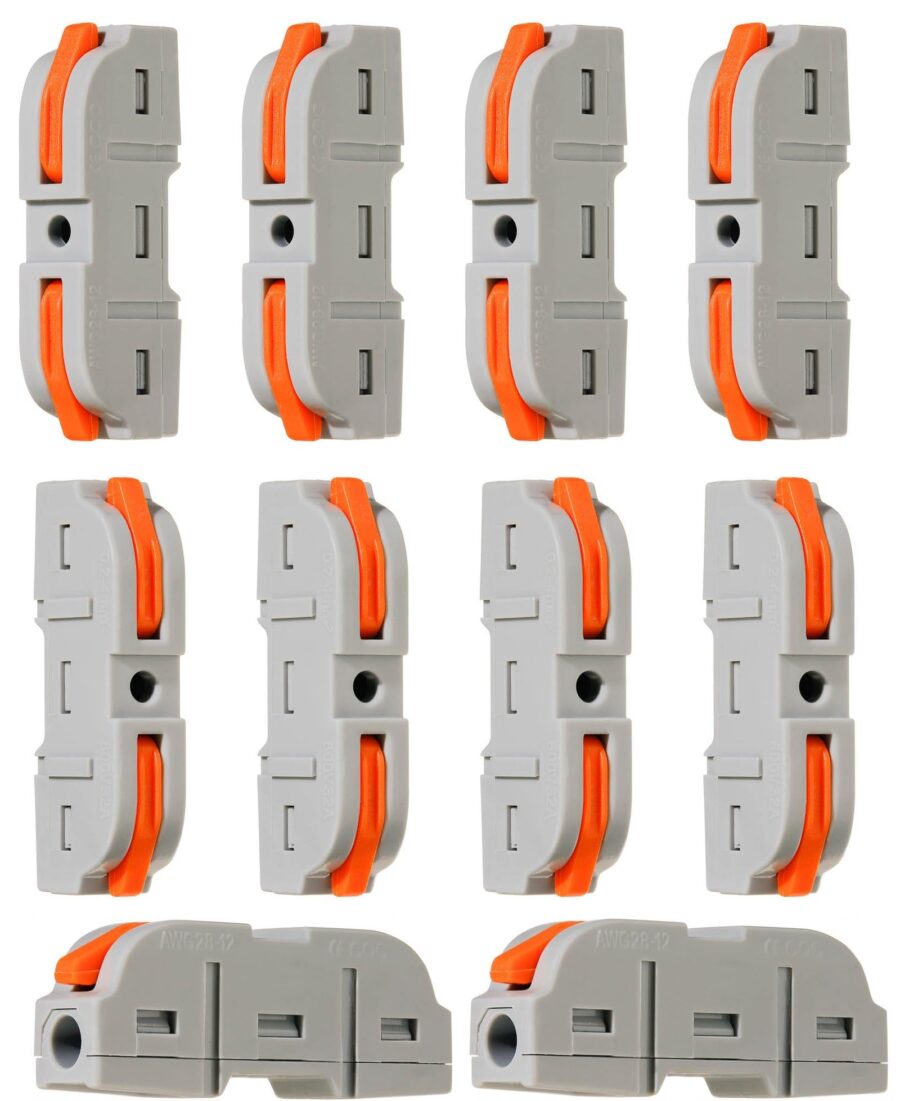

• Package Contents - 10 x dual terminal push-type wire connectors.

Description

Dual-lever wire connectors provide quick, secure joining for solid and stranded electrical cables. Push-lever operation eliminates wire twisting and crimping while allowing easy circuit disconnection and reuse. Specifications Material: Flame retardant PA66 / PC shell, nickel-plated copper Electrical Rating: 32A / 250V Wiring Range: 0.08-4.0mm² (28-12 AWG solid), 0.08-2.5mm² (28-14 AWG stranded) Stripping Length: 9-10mm Quantity: 10 Pieces Works Great For Domestic lighting fixtures, junction boxes, switch controls, and home automation rewiring. Pro Tip Strip exactly 9-10mm of insulation and use the built-in test port with a voltage tester to verify circuit continuity before closing junction boxes. Package 10 x 2-pin lever wire connectors
